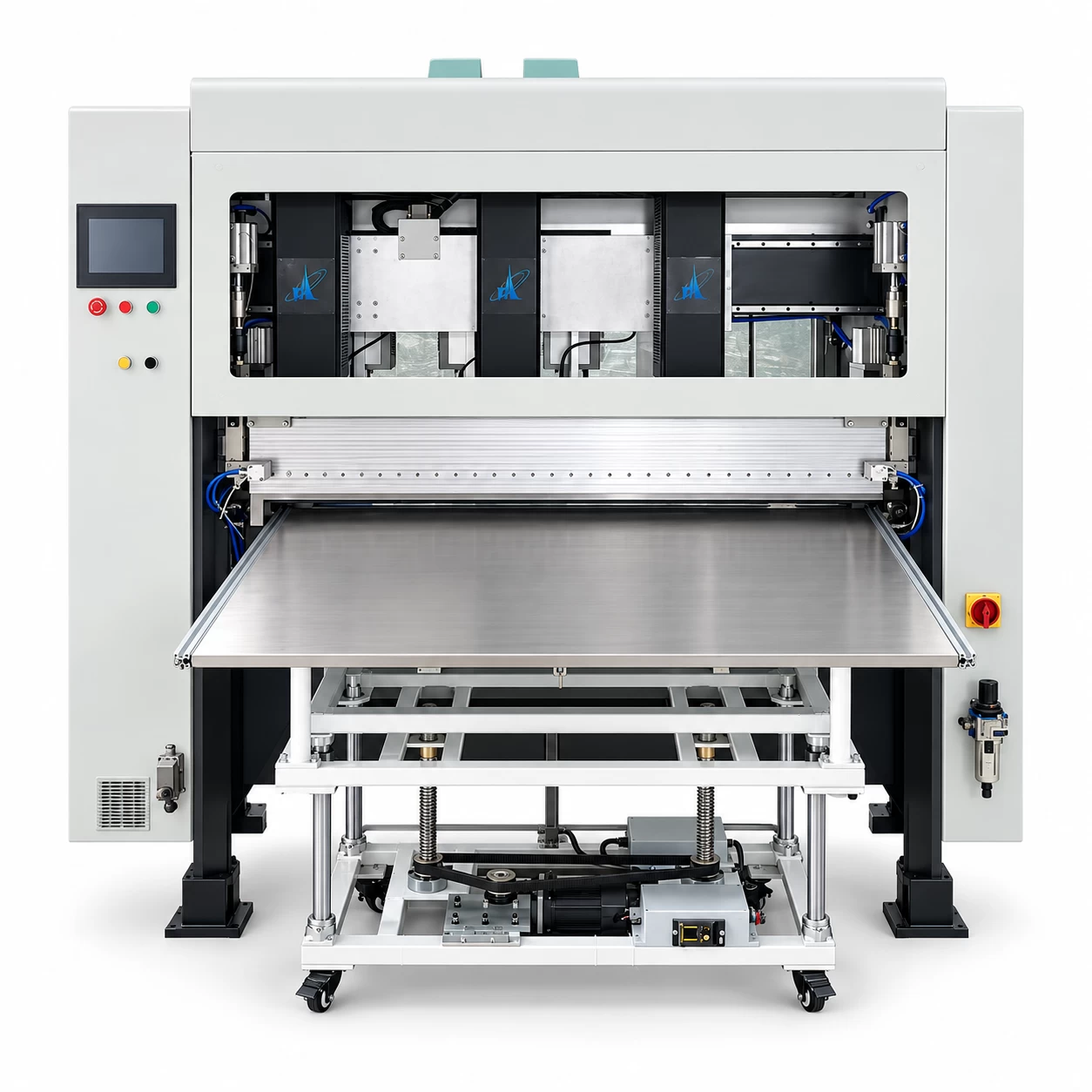

Product description
Main Technical Specifications
| Item | Specification |
|---|---|
| Maximum Cutting Width | 1,300 mm |
| Feeding Speed | 1–40 m/min, adjustable |
| Cutting Speed | 1–30 cuts/min |
| Material Thickness | 0.015–0.25 mm |
| Length Accuracy | ±1 mm per meter |
| Slitting Blade Adjustment | Adjustable via the control screen |
| Heater Drive System | Servo motor, rack-and-pinion system and HIWIN linear guide |
| PP Roll Holding Method | Air-expansion shaft |
| PP Preheating Method | Laser heating |
| Total Installed Power | 3 kW |
| Laser Operating Mode | Pulsed |
| Pulse Frequency | 10 kHz |
| Compressed Air Requirement | Above 0.5 MPa |
Product Advantages
- Advanced Feeding System
The independently developed feeding system improves loading efficiency and reduces labor requirements. - Cost-Effective Production
Standardized, large-scale manufacturing helps control production costs and provides competitive pricing. - Extensive Industry Experience
Years of industry experience ensure reliable machine design, manufacturing and technical support. - Excellent Cost Performance and Ready Stock
The machine offers excellent value, with units available from stock for shorter delivery times. - Advanced and Reliable Technology
The equipment delivers stable operation, consistent performance and high reliability.
