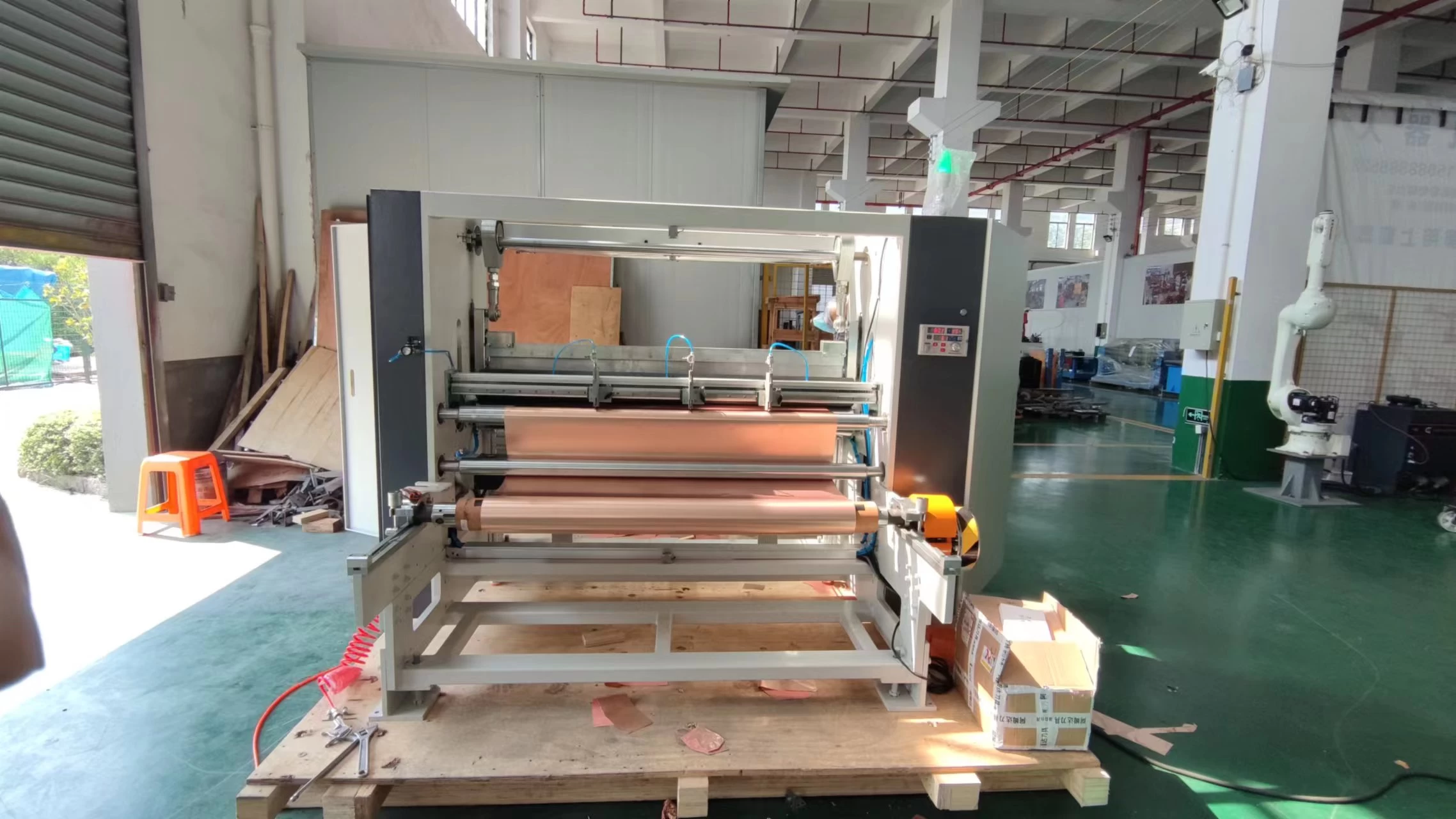

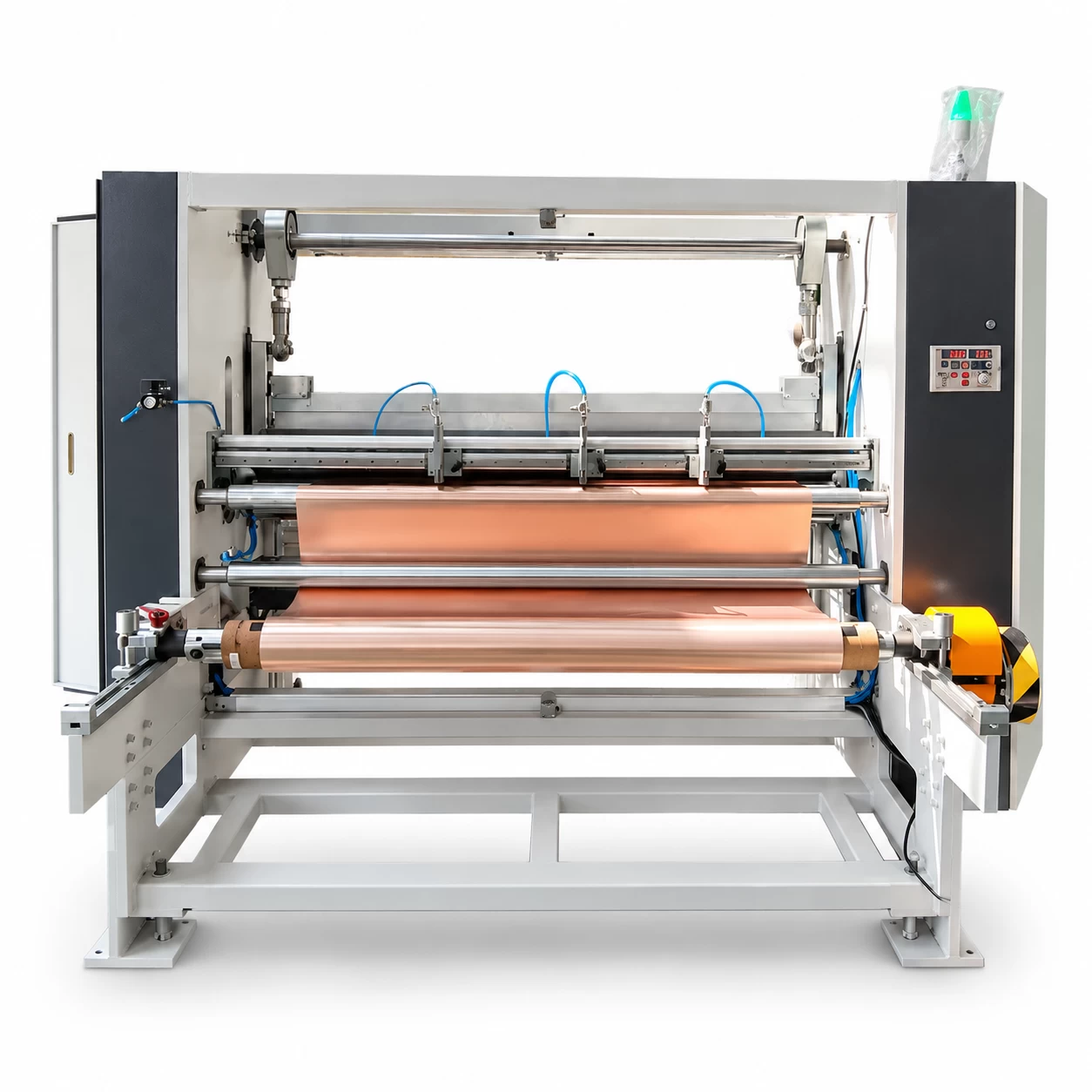

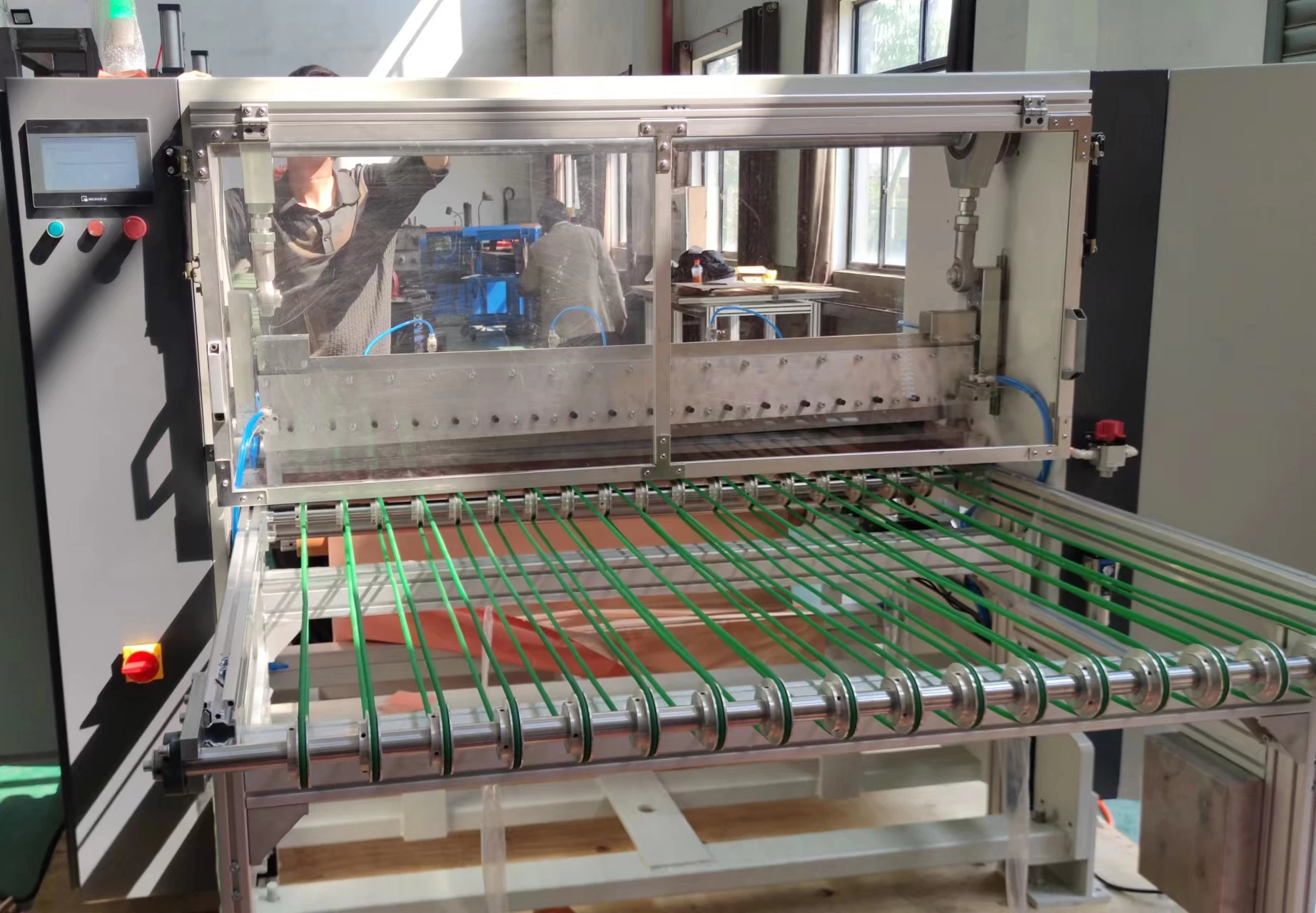

Product description
Main Technical Specifications
| Item | Specification |
|---|---|
| Maximum Cutting Width | 1,300 mm |
| Feeding Speed | 1–40 m/min, adjustable |
| Cutting Speed | 1–30 cuts/min |
| Material Thickness | 0.015–0.25 mm |
| Length Accuracy | ±1 mm per meter |
| Slitting Blade Type | Upper and lower slitting blades |
| Number of Slitting Blades | Up to 4 blades |
| Blade Lifting System | Pneumatic cylinder |
| Blade Position Adjustment | Guide-rail movement with manual width setting |
| Copper Foil Holding Method | Air-expansion shaft |
| Material Feeding System | Servo motor, rubber rollers and synchronous belt |
| Tension Control | Tension controller and magnetic-powder brake |
| Cross-Cutting Drive | Pneumatic cylinder |
| Loading Method | Air-expansion shaft |
| Compressed Air Requirement | Above 0.5 MPa |
Available Configurations
- Inline cutting system
- Slitting system
- Automatic stacking system
Product Advantages
- Multiple Machine Configurations
Inline, slitting and stacking configurations are available to meet different copper foil processing requirements. - Cost-Effective Manufacturing
Standardized, large-scale production helps control manufacturing costs and provides competitive pricing. - Extensive Industry Experience
Years of industry experience support reliable machine design, manufacturing and technical service. - Excellent Value and Ready Stock
The machine offers excellent cost performance, with selected models available from stock for shorter delivery times. - Stable and Reliable Technology
Advanced control and transmission systems ensure stable operation, accurate cutting and reliable performance.
